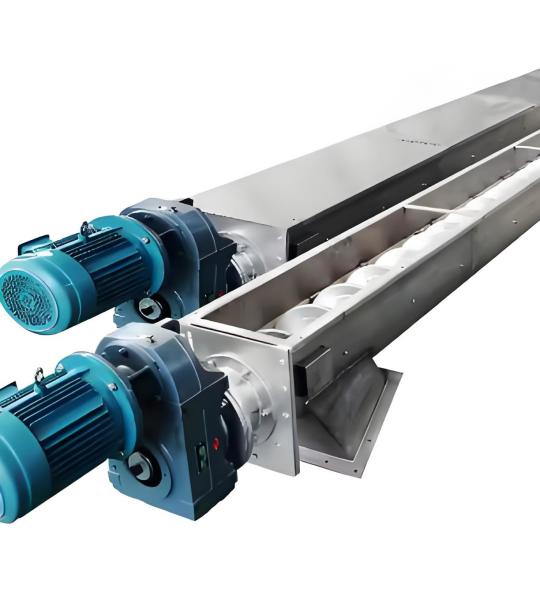

Customized U-Trough Stainless Steel Spiral Conveyor for Chemical Industry Dust and Sand Transportation
U-Trough Spiral Conveyor Function
Intelligent Control and High Automation: Integrated intelligent control system enables remote monitoring and automatic adjustment, enhancing production efficiency and safety.
Efficient Conveyance with Strong Adaptability: The shaftless spiral design is suitable for efficient conveyance of various materials, especially viscous materials like oil sludge.
Low Noise and Environmentally Friendly: Advanced noise reduction technology ensures low operating noise, with significant energy savings in line with green production standards.
U-Trough Spiral Conveyor Application
1.Environmental Facilities: Oil and sludge, as well as household waste conveyance in wastewater treatment plants and landfills.
2.Food Processing: Conveying viscous food raw materials such as jam and syrup in food and beverage processing factories.
3.Livestock Farming: Conveying and composting livestock manure to improve resource utilization.
4.Construction Industry: Conveying and cleaning construction waste, sand, and mud on construction sites.
5.Mining: Conveying coal dust, tailings, and other materials in mines to enhance mining efficiency.
U-Trough Spiral Conveyor Technical Parameters
| Attribute | Attribute Description |
| Product Name | Intelligent Shaftless Spiral Conveyance Equipment |
| Material | 316L Stainless Steel (Corrosion-Resistant) |
| Power (HP) | 1-50HP (Customizable) |
| Dimensions (L×W×H) | Customized Based on Site Conditions |
| Conveying Pipe Diameter | 200-1000mm (Customizable) |
| Frame Material | Stainless Steel |
| Conveyor Type | Semi-Automatic/Fully Automatic |
| Conveying Speed | 10-50m/min (Adjustable) |
| Length | 1-40m (Customizable) |
| Pipe Wall Thickness | 2-8mm (Customizable) |
| Voltage | 380V 50HZ (Customizable) |
| Applications | Environmental Facilities, Food Processing, Livestock Farming, Construction Industry, Mining |
